Power & Free Conveyors Built for Flexibility and Flow
Power & Free conveyors deliver unmatched control and scalability for complex material handling environments. At IMH Systems, we design and install custom Power & Free conveyor systems that move with your production—not against it. These dual-track systems allow for load accumulation, precise routing, and intelligent control—all without stopping the line.
Ideal for automotive, manufacturing, paint, and aerospace applications, Power & Free systems reduce downtime, optimize flow, and grow with your business.
What Is a Power & Free Conveyor?
Power & Free systems operate on two tracks: one continuously powered, and one free-moving. Trolleys attached to the free track can stop, accumulate, or transfer independently—offering next-level control over load movement.
- Power Track: Continuously driven chain system
- Free Track: Allows trolleys to disengage, stop, and switch lanes
- Dog Mechanisms: Engage/disengage loads automatically based on system logic
These systems are often used where flexible routing, buffering, or elevation changes are required mid-process.
Need a system that can handle staging, accumulation, and multi-line routing? Power & Free conveyors are built for it.
System Options & Load Capacities
We offer fully engineered solutions across all track sizes and configurations:
- 3″ Track: Up to 1,500 lbs per carrier
- 4″ Track: Up to 3,000 lbs per carrier
- 6″ Track: Up to 8,000 lbs per carrier for heavy-duty loads
- Inverted Systems: Ideal for clean rooms and bottom-up assembly lines
All systems are modular and expandable. We also offer custom configurations to meet specific payload, spacing, or routing needs.
Why Power & Free?
- ✔ Stop and start individual loads without halting the line
- ✔ Accumulate parts for batch operations or inspection
- ✔ Easily change elevation or route products to multiple lines
- ✔ Integrates with automated lifts, sensors, and robots
- ✔ Perfect for high-mix, high-volume production environments
Industries That Benefit
- Automotive: Body and parts transport, P&F assembly lines
- Aerospace: Modular routing of oversized or sensitive loads
- Paint Systems: Wash, cure, dry with no contamination
- General Manufacturing: Clean staging, elevation change, and in-line storage
Photo Gallery – Power & Free Systems

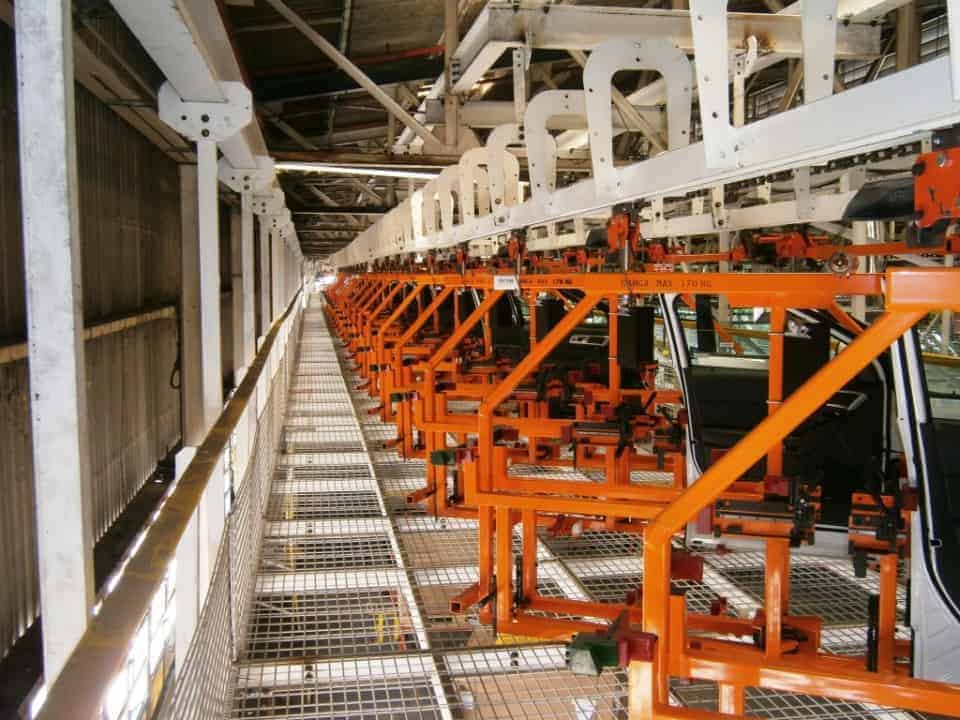

Power & Free system with stabilizer rails for assembly delivered to an Automotive client in Northern Ohio.

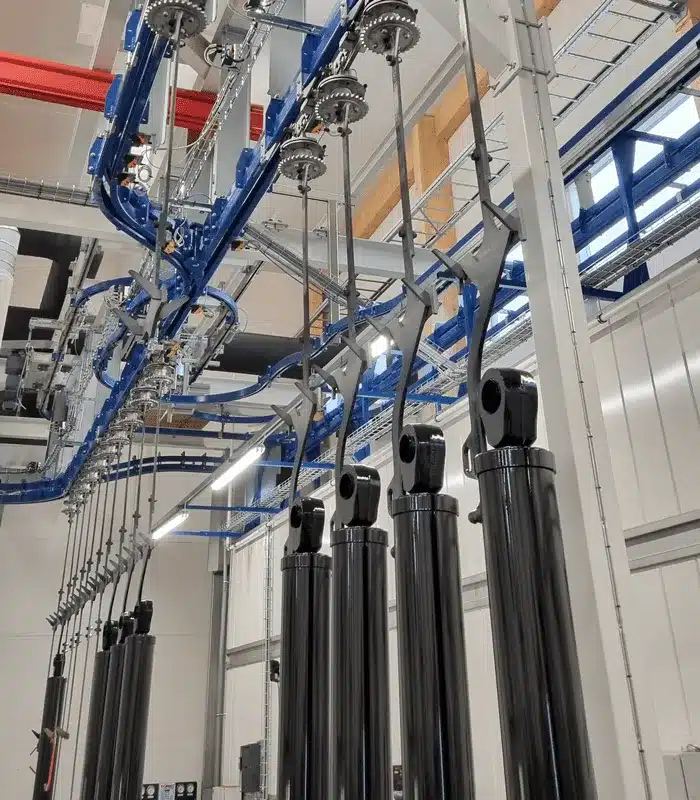

Power & Free System designed for powder coating operations delivered to a an automotive client in North Georgia
Ready to Install or Upgrade Your Power & Free Line?
We offer full turnkey delivery—from system design and panel fabrication to structural steel, controls, and installation.
Learn more about our installation services or connect with our team for a customized quote.
Looking to modernize your existing Power & Free conveyor? This guide to control system modernization is a must-read.
Get in Touch
Let’s review your layout, production goals, and space requirements. We’ll engineer a system that delivers.
Request Power & Free Conveyor Services
