Project scope
IMH responsibility: Field installation.
- 40-ton double-girder bridge crane
- 80-foot bridge span
- Bridge and hoist placement
Crane Systems / Project scope
40 Ton Bridge Crane — 80 ft Span
Installation of a 40-ton double-girder bridge crane with an 80-foot span. Explore the bridge placement, hoist details, and views from inside the installation bay.
- IMH responsibility
- Field installation
- Crane capacity
- 40 tons
- Bridge span
- 80 ft
On site / 8 photographs
An 80-foot span. In detail.

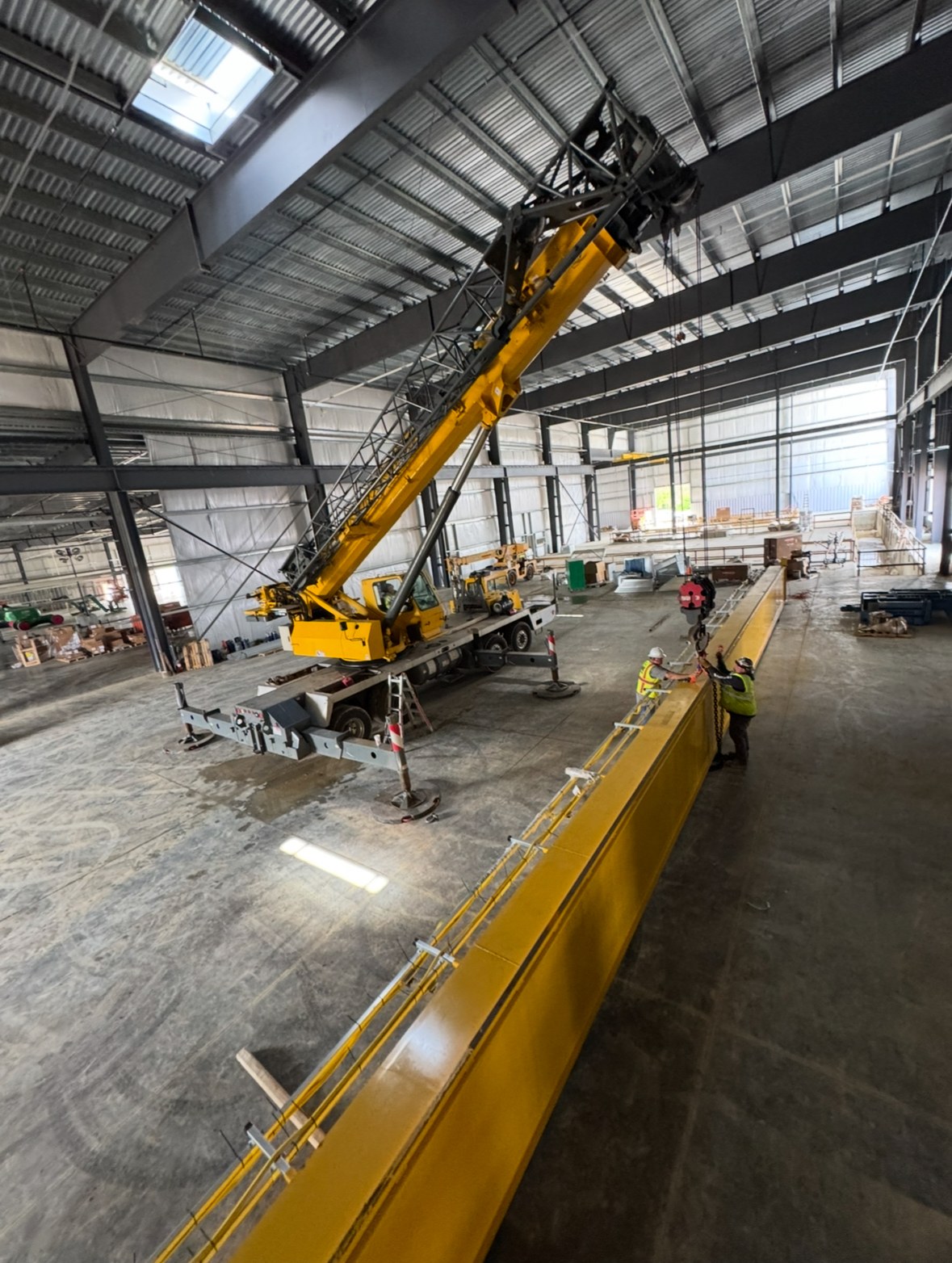

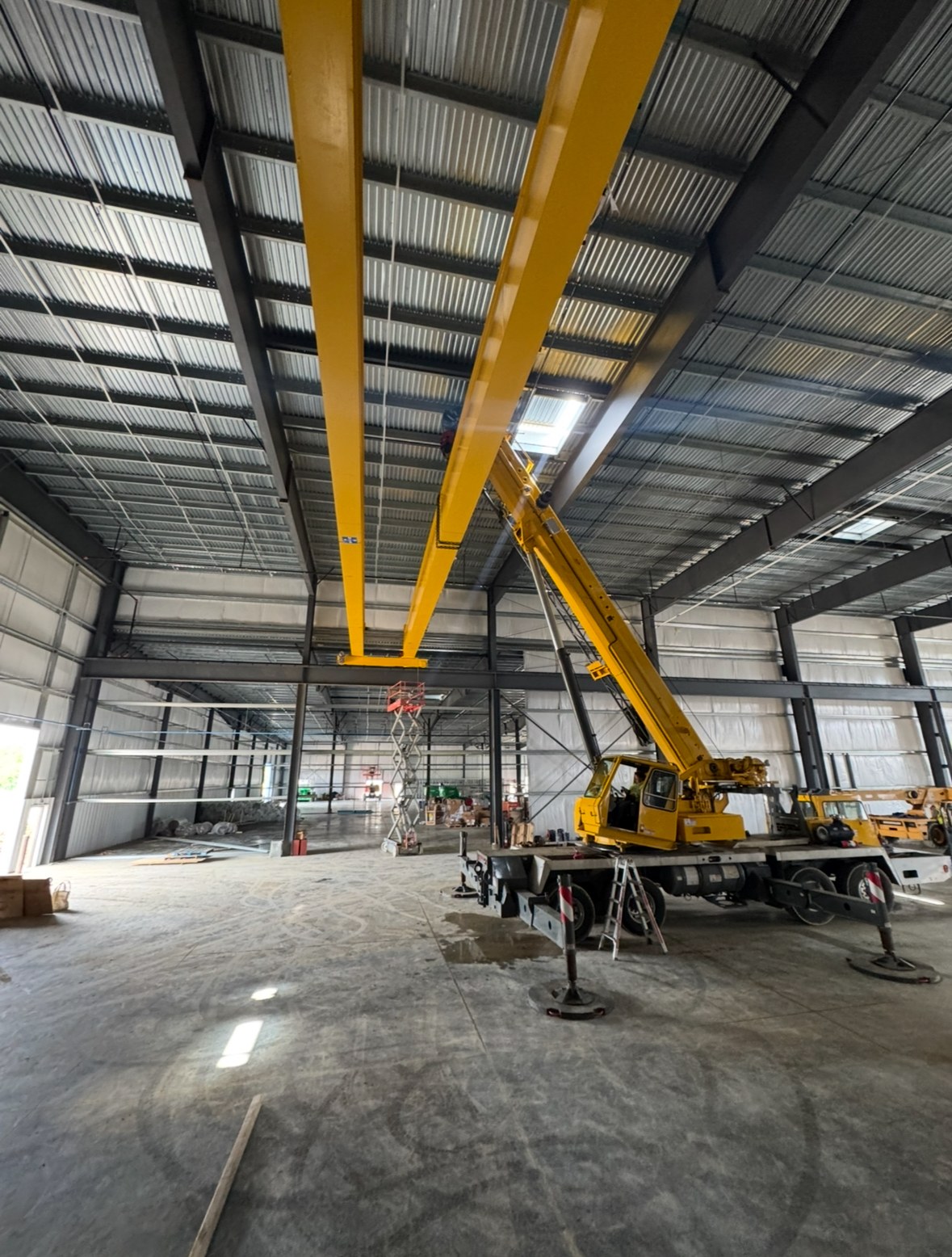

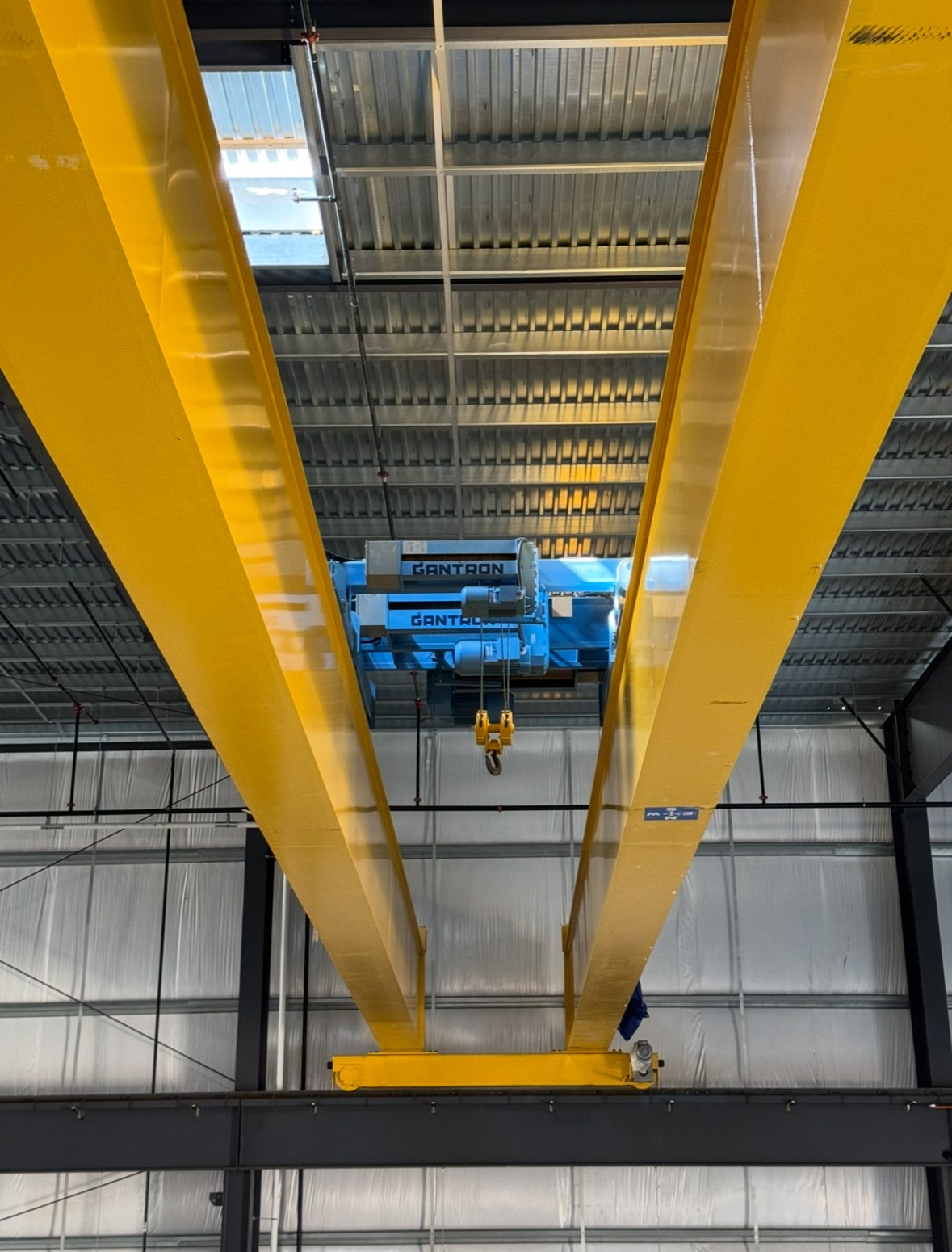

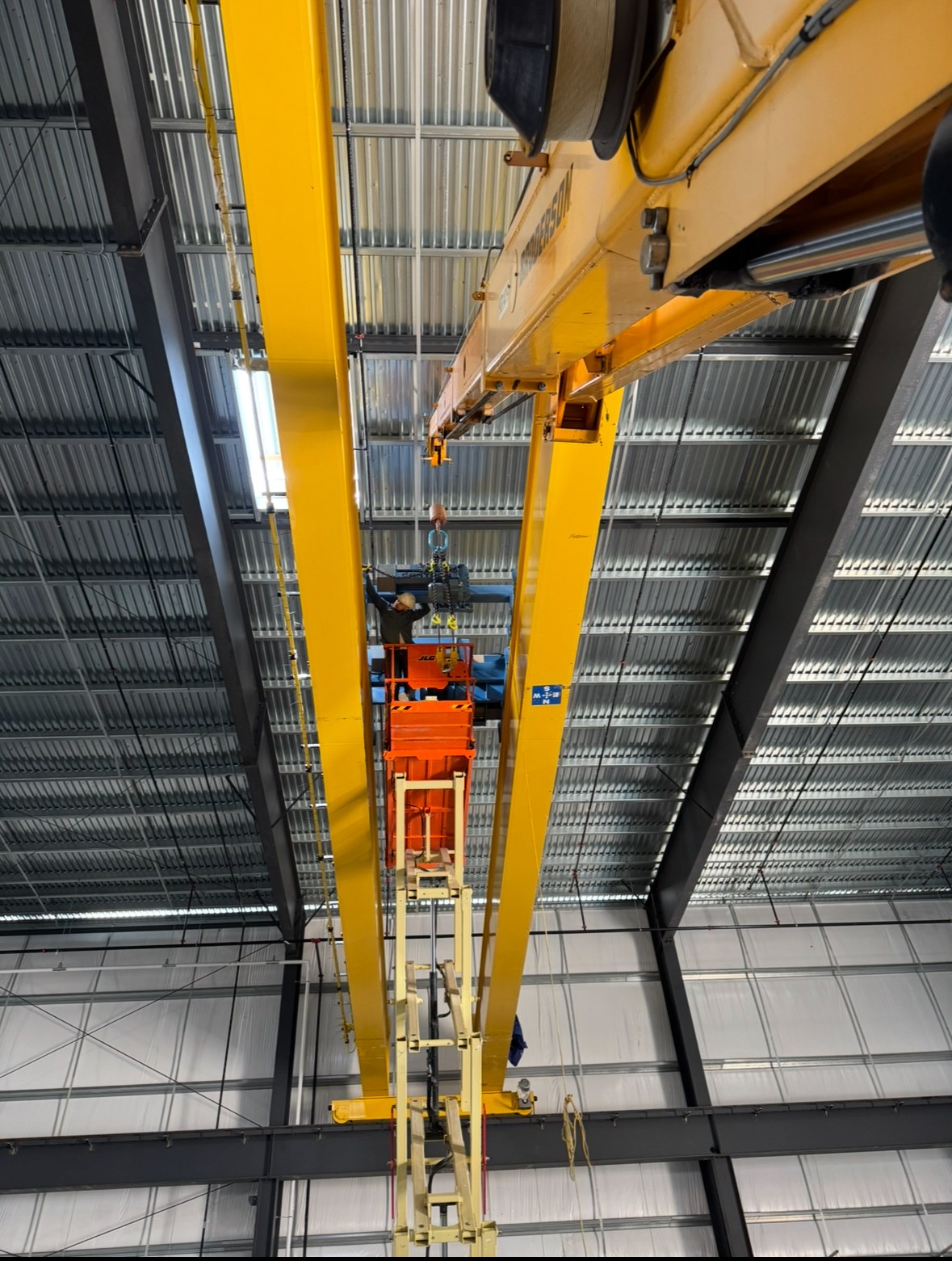

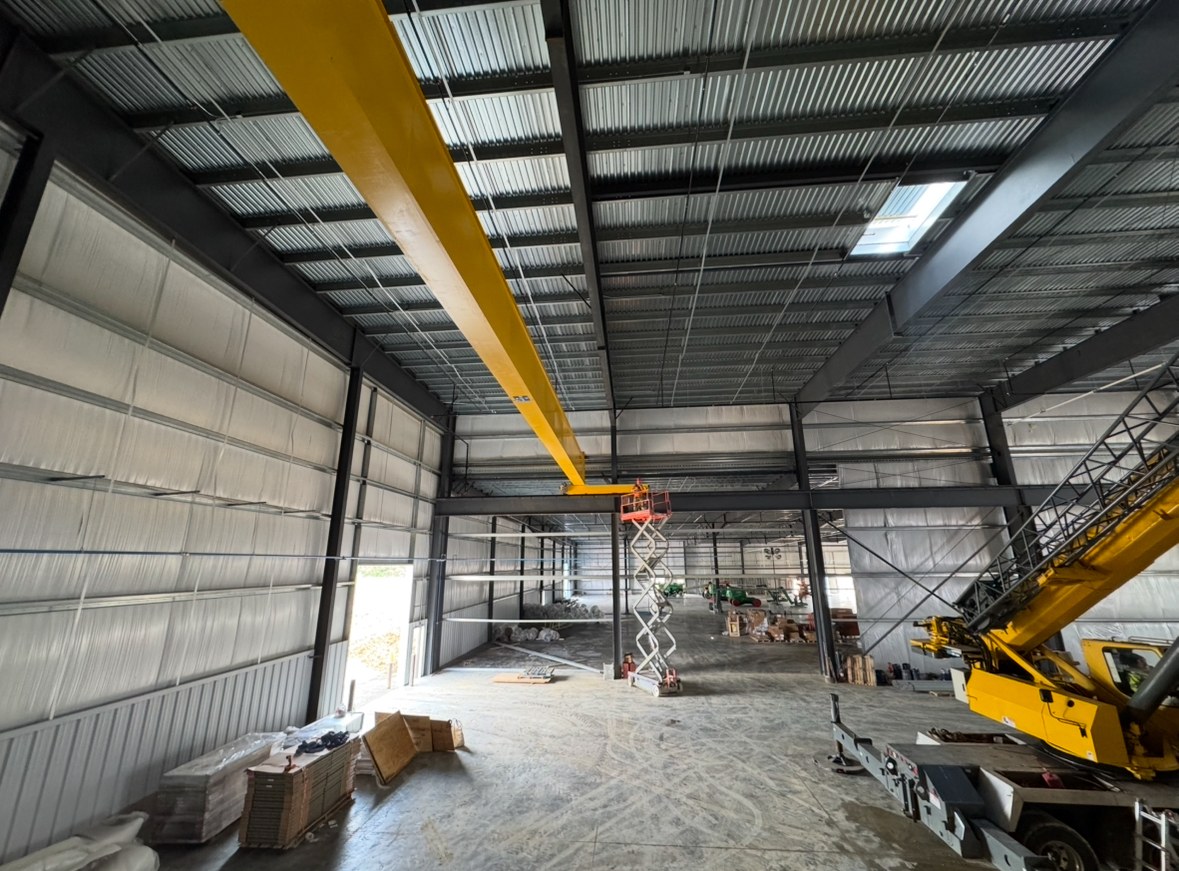

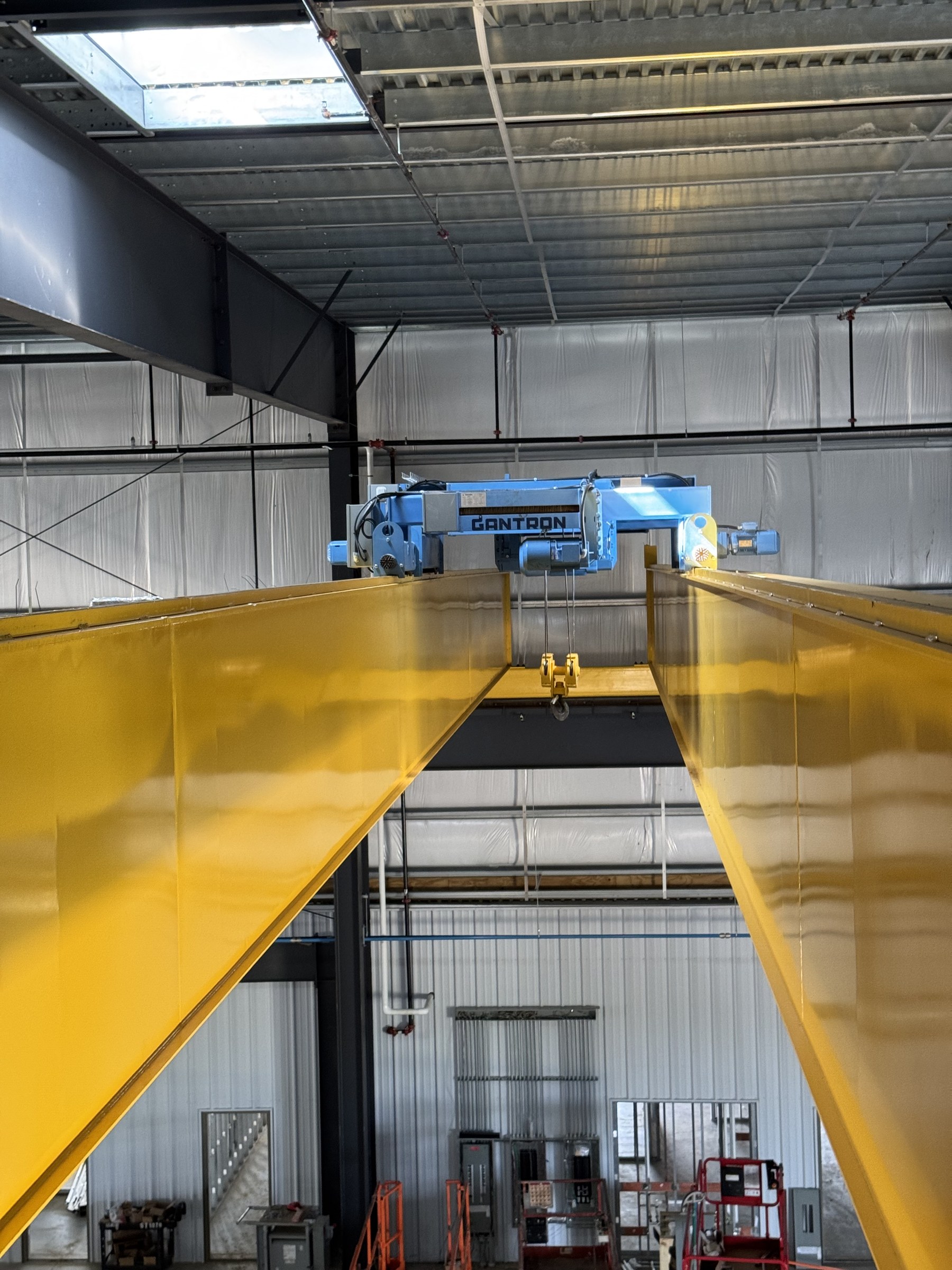

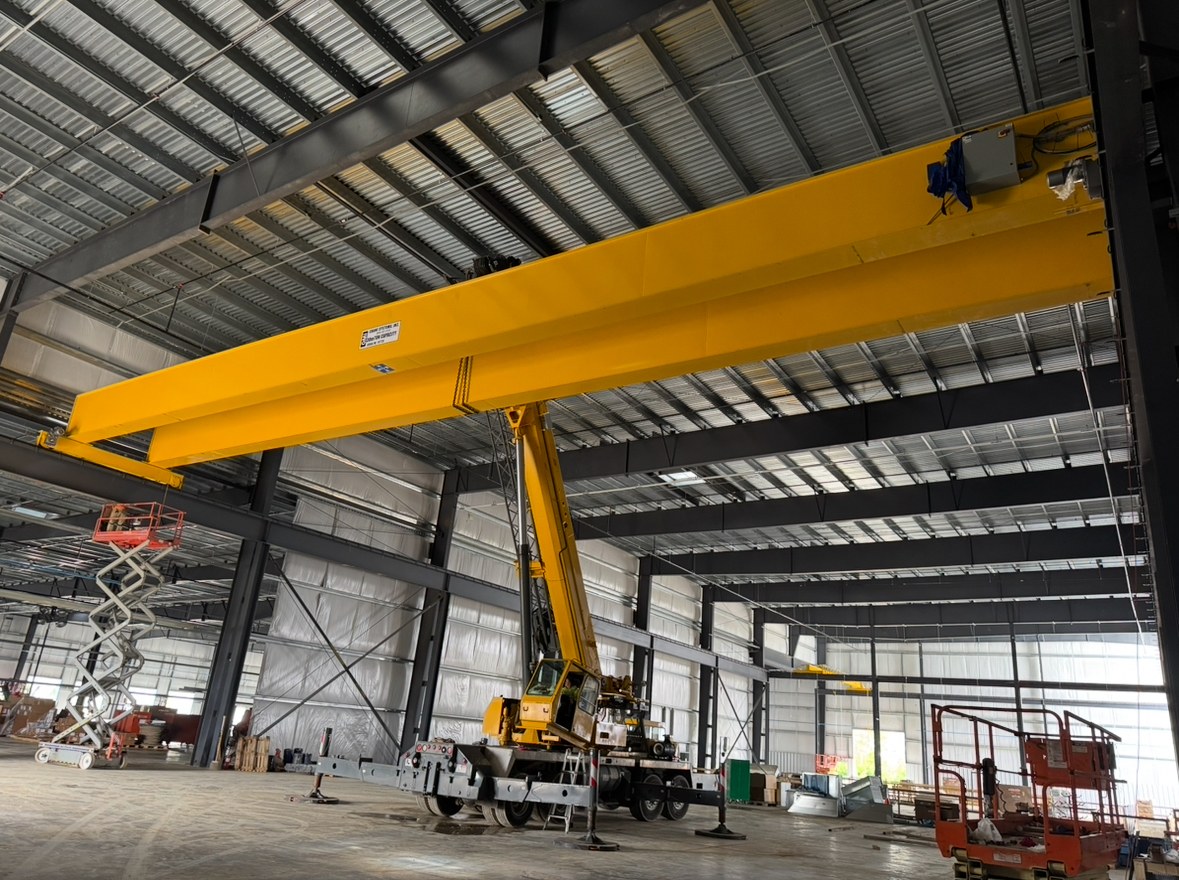

From girders staged on the floor to the bridge overhead. Explore the crane placement, installation equipment, and hoist connections through wide views and close-up photographs.

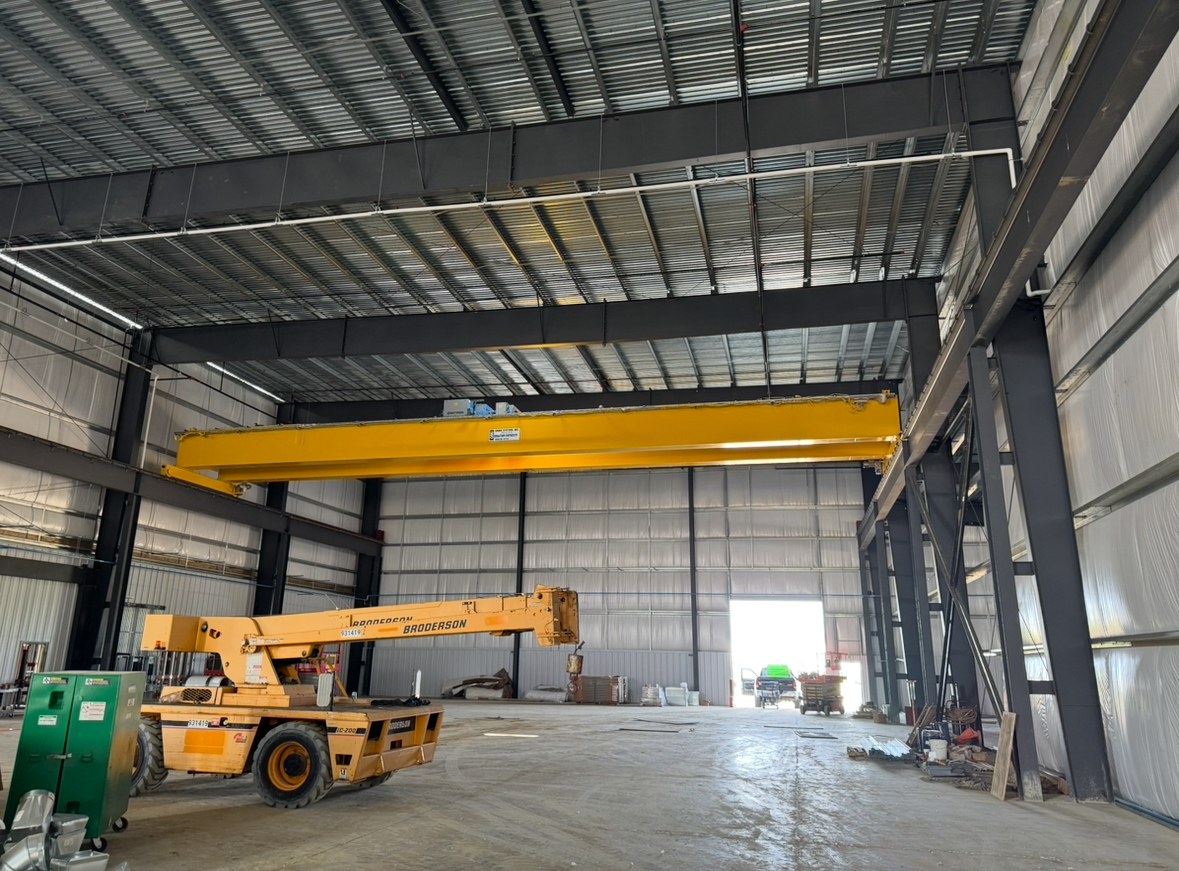

The 40-ton bridge crane spans the building bay above the installation equipment.View full photo (opens in a new tab)
01 / 08 photos
From the field / Site video
Inside the crane bay.
A moving view of the bridge crane and surrounding installation area. Watch the full recording for a closer look at the scale of the work.
Open the full video ↗ (opens in a new tab)What to bring to your project
Bring the installation bay into the first conversation.
The 40-ton capacity and 80-foot span describe the equipment. The installation photographs also show why delivery, girder staging, bridge assembly, and access inside the bay need a coordinated field plan.
Start the scope conversation.
Bring the capacity, span, bay dimensions, runway information, delivery route, and access limitations. Establish engineering and acceptance responsibilities with the project team.
Explore bridge crane installationProject references are anonymous to respect customer and partner relationships. Contact IMH to discuss the scope relevant to your application.
