Project scope
Follow the track through the structure.

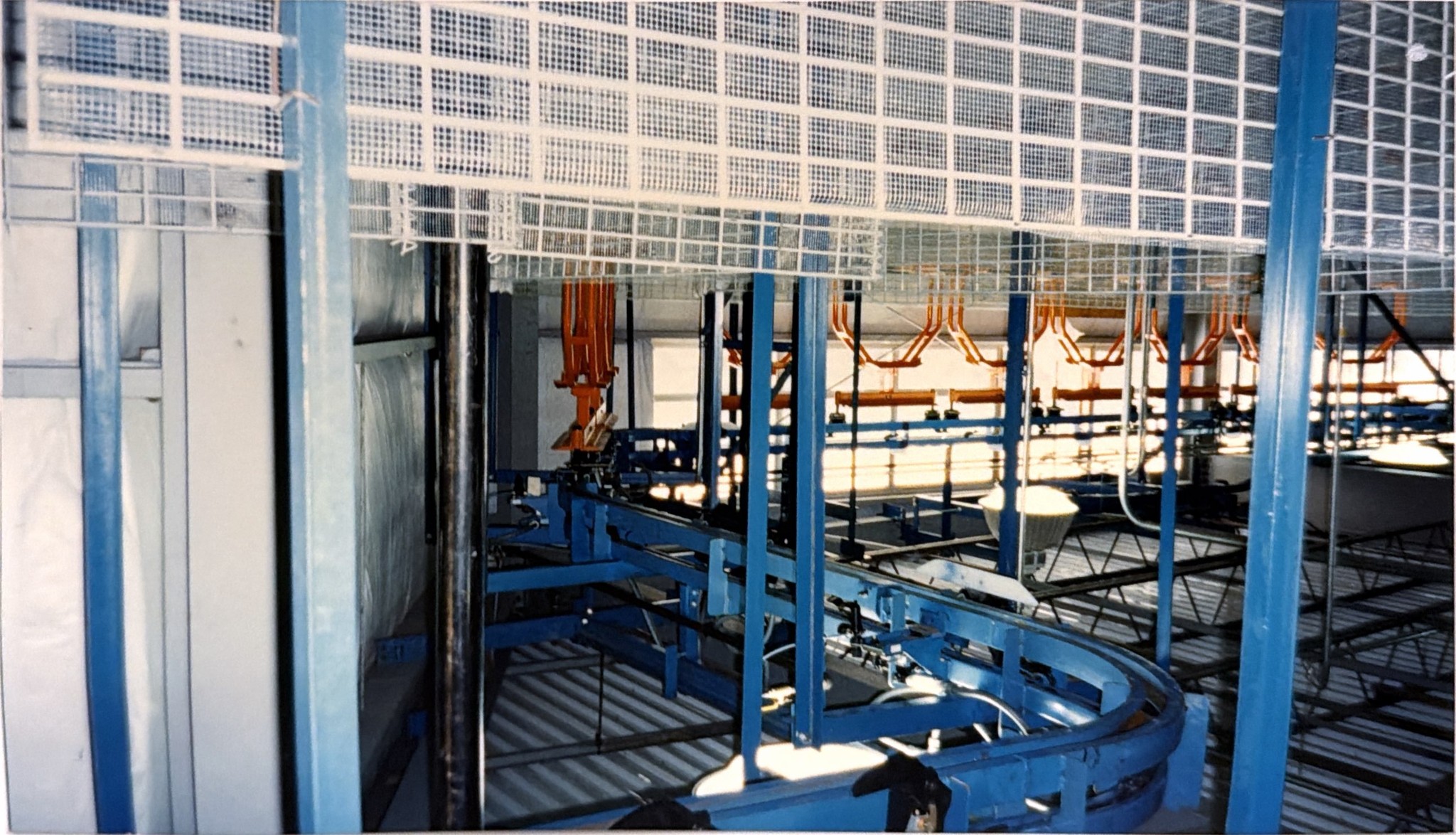

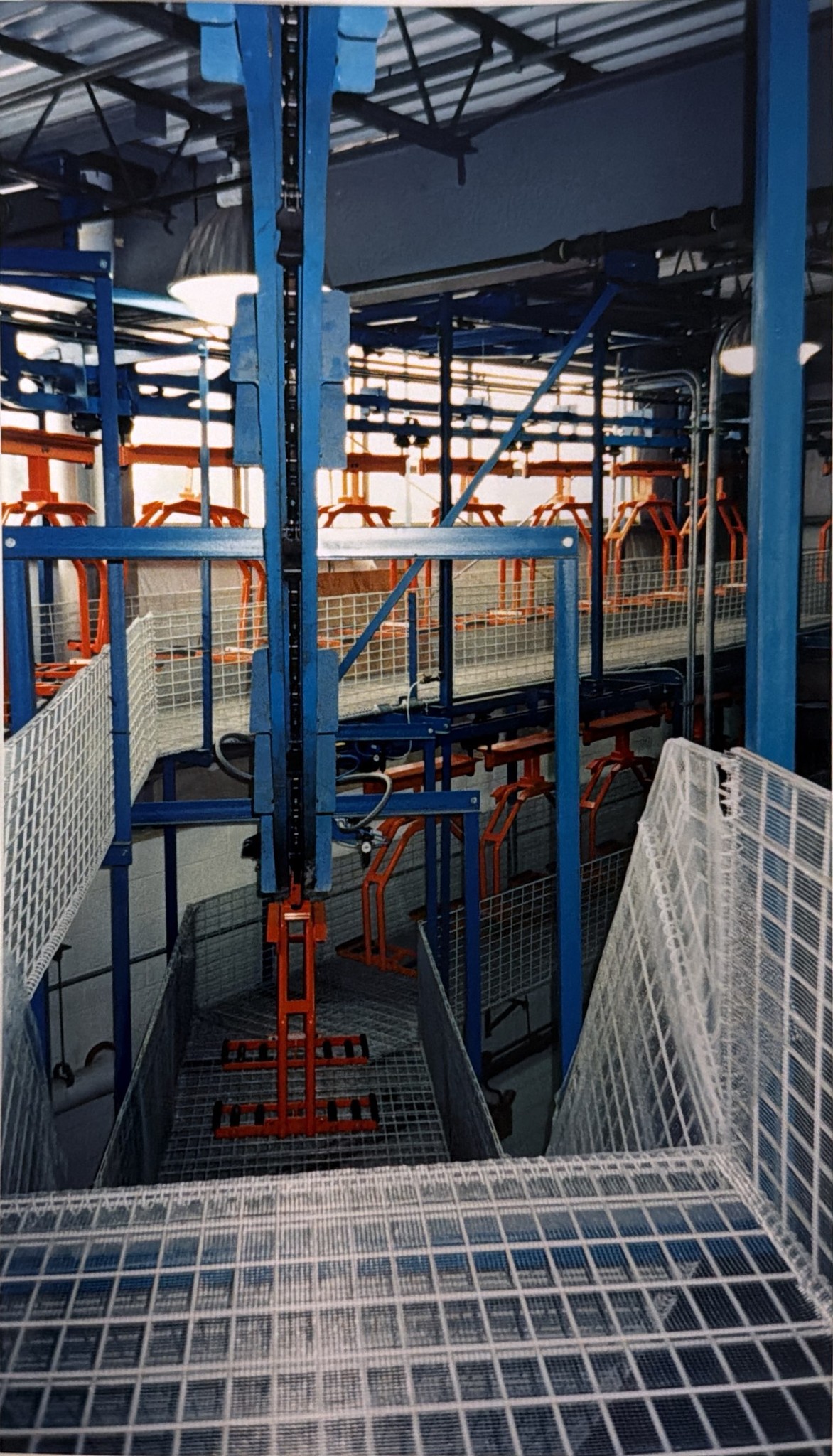

This legacy project archive shows a power-and-free conveyor arranged within a blue steel support structure. Orange carriers follow the track through straight sections, curves, and elevation changes, with white mesh guarding around the route.
- Power-and-free conveyor routing
- Carrier and track connections

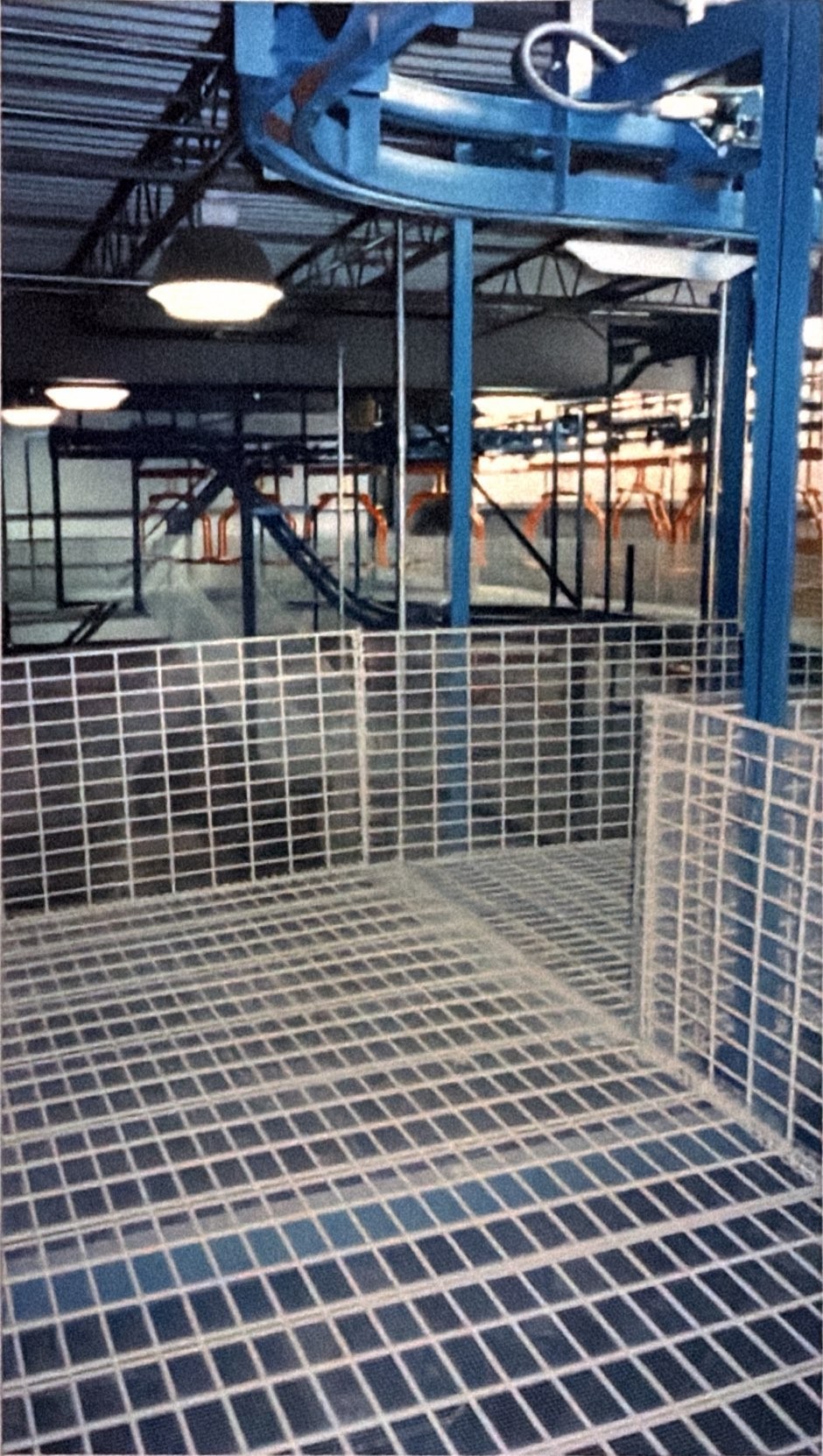

- Supporting steel and mesh guarding
Track at different elevations.

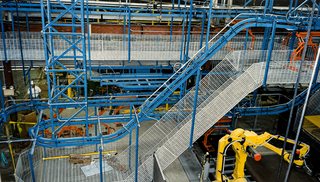

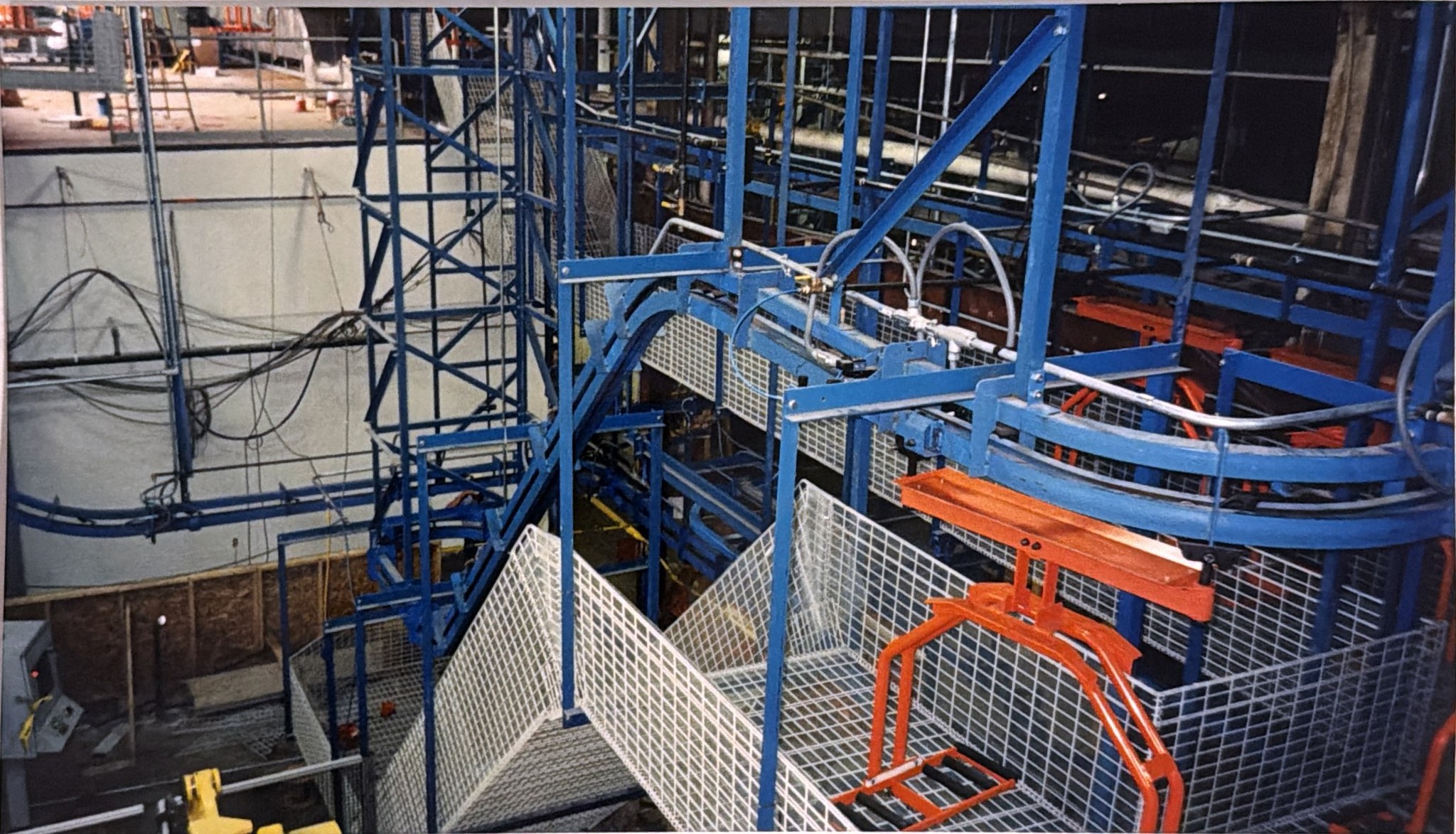

The wide views show conveyor runs above and below one another, connected by changes in track elevation.
Carriers and track connections.

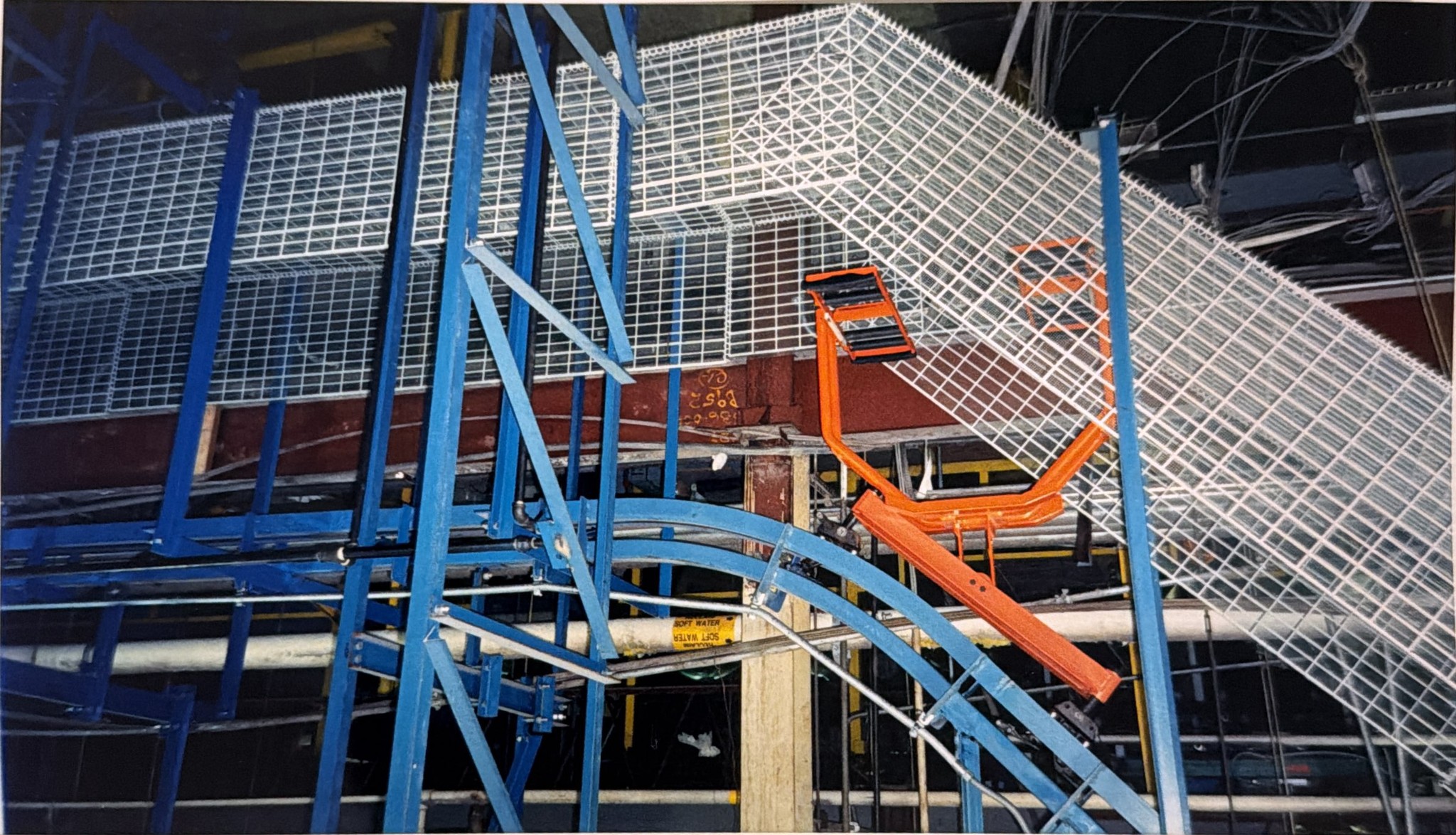

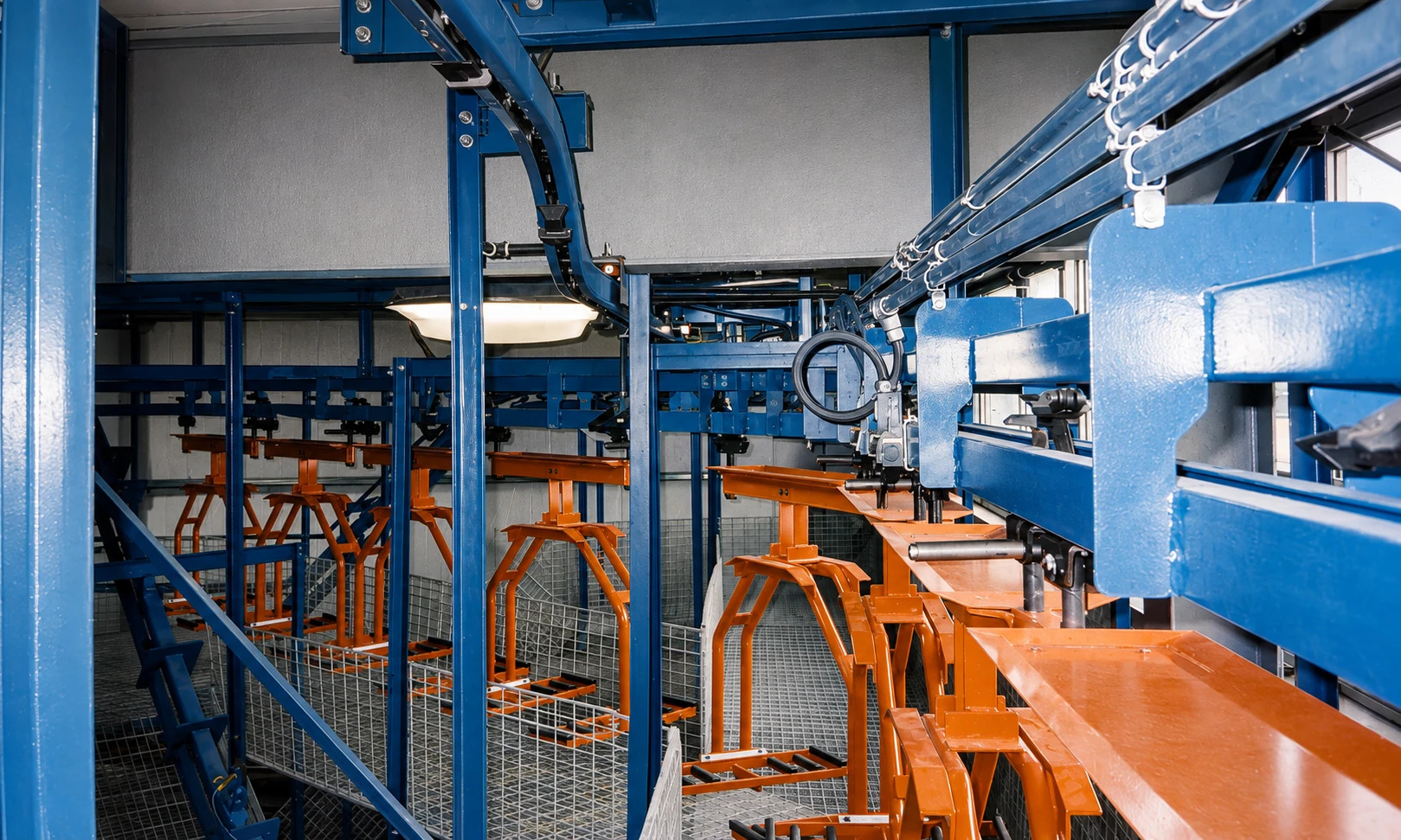

Closer views show the orange carrier assemblies beneath the track and the connections between the moving equipment and its support structure.
The surrounding work area.
Support columns, mesh guarding, and adjacent production equipment appear together in the project photographs.
