Project scope
A conveyor built around the paint line.
IMH designed, fabricated, and installed a power-and-free paint conveyor in Gainesville, Georgia. The project combined the conveyor and bolt-together supporting steel with installation of two downdraft booths and replacement of the air make-up equipment.
- Power-and-free conveyor design, fabrication, and installation
- Two downdraft booths and air make-up replacement
- Bolt-together support steel
Power & free conveyor.

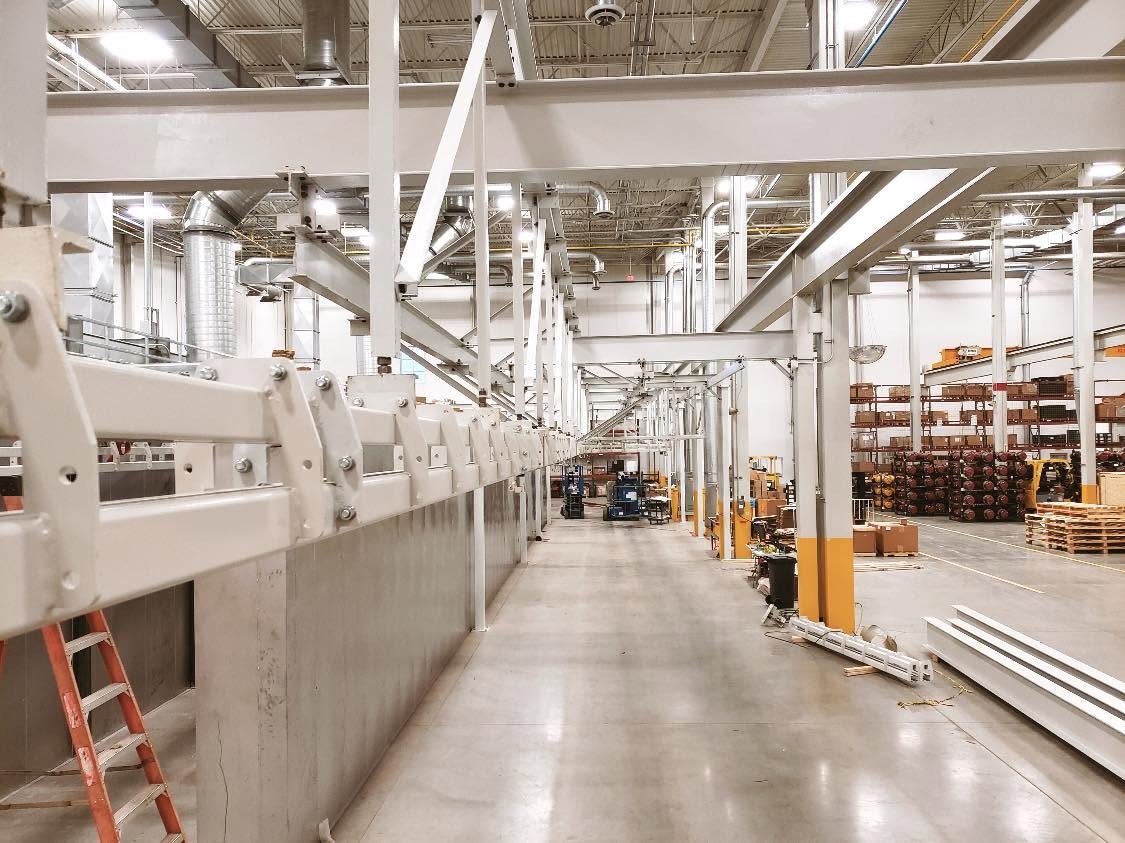

The overhead route and carrier system formed a design, fabrication, and installation scope for the painting operation.
Bolt-together construction.

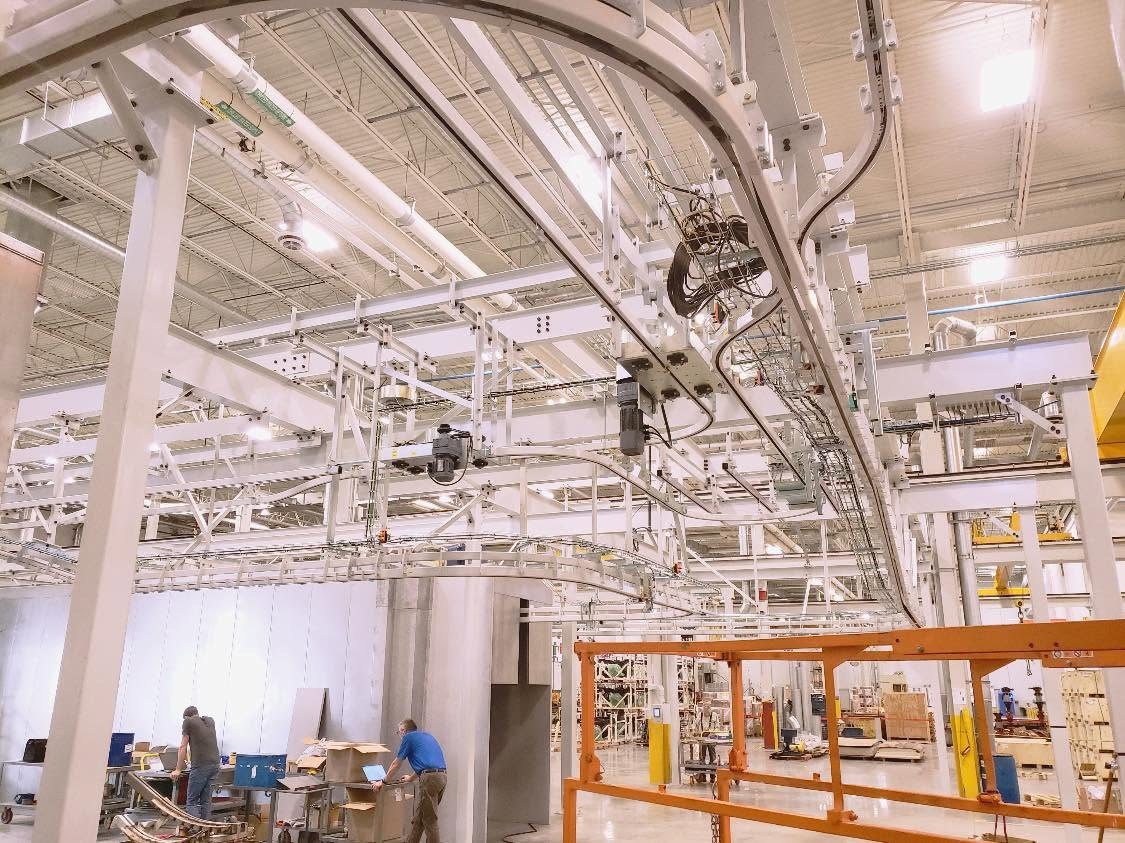

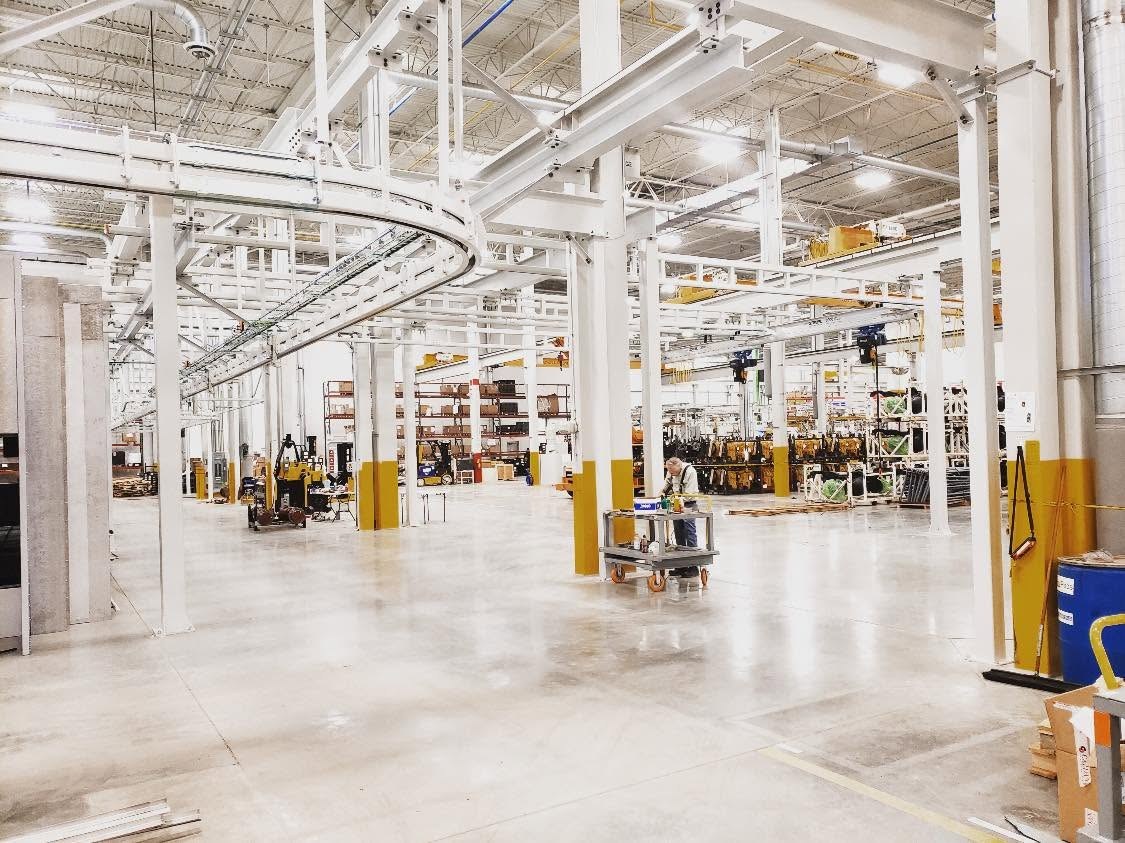

The structural steel and conveyor used bolt-together construction. The photographs show the white support frames, track curves, and connection details.
Finishing-equipment integration.

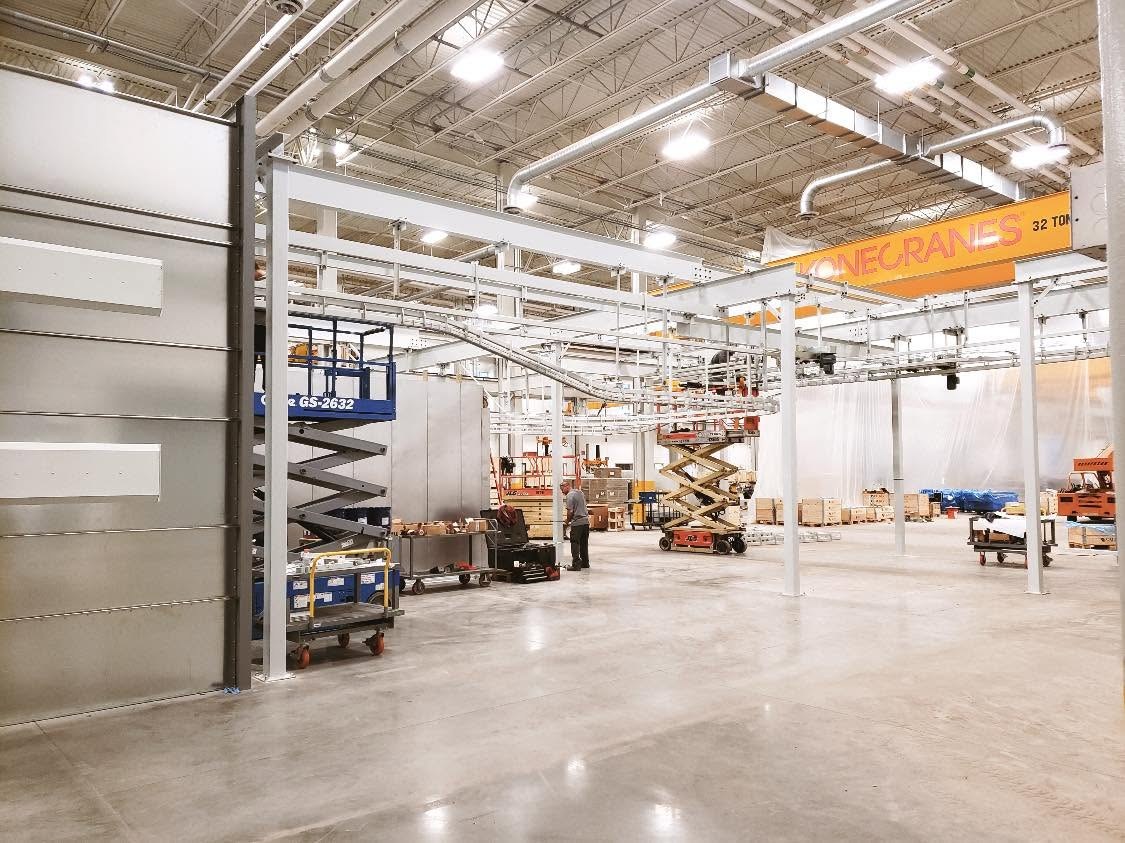

Two downdraft booths and air make-up replacement were included with the conveyor project.
