Project scope
Four lines and the equipment around them.
IMH designed, fabricated, and installed the power-and-free conveyor and supporting steel for this Toledo project. The complete scope included four assembly lines, four paint booths, a mix room, explosion-relief ducts, and associated hoists and rails.
- Four power-and-free assembly lines and supporting steel
- Four paint booths and a mix room
- Three explosion-relief ducts, hoists, and rails
Conveyor and supporting steel.

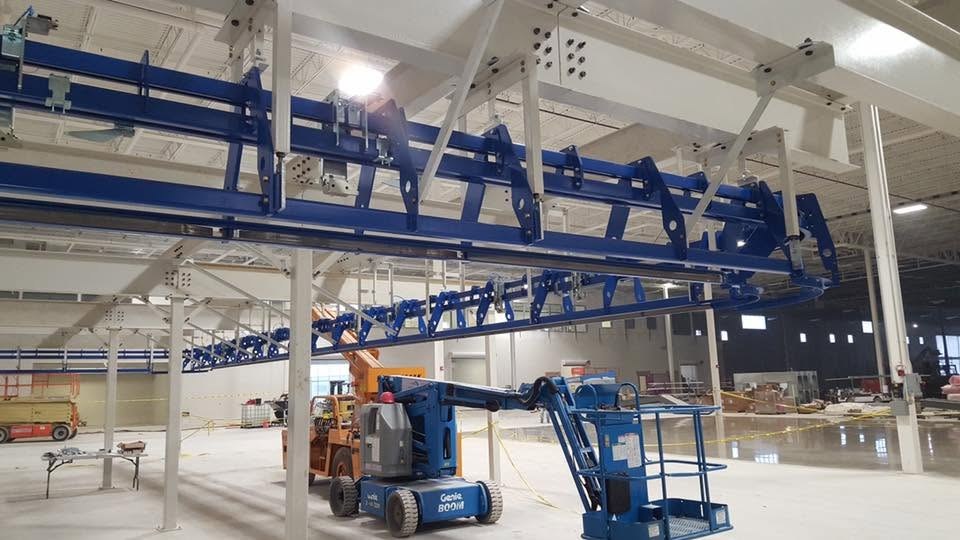

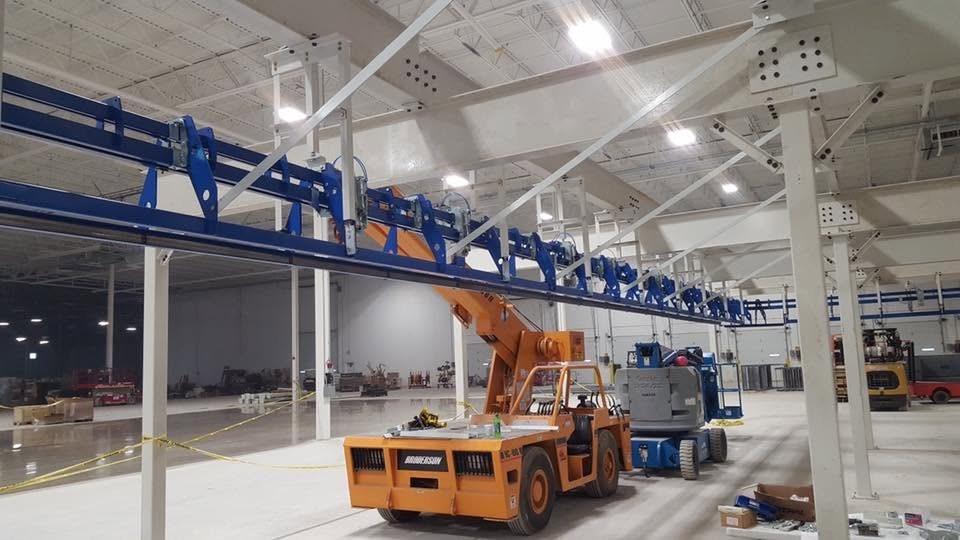

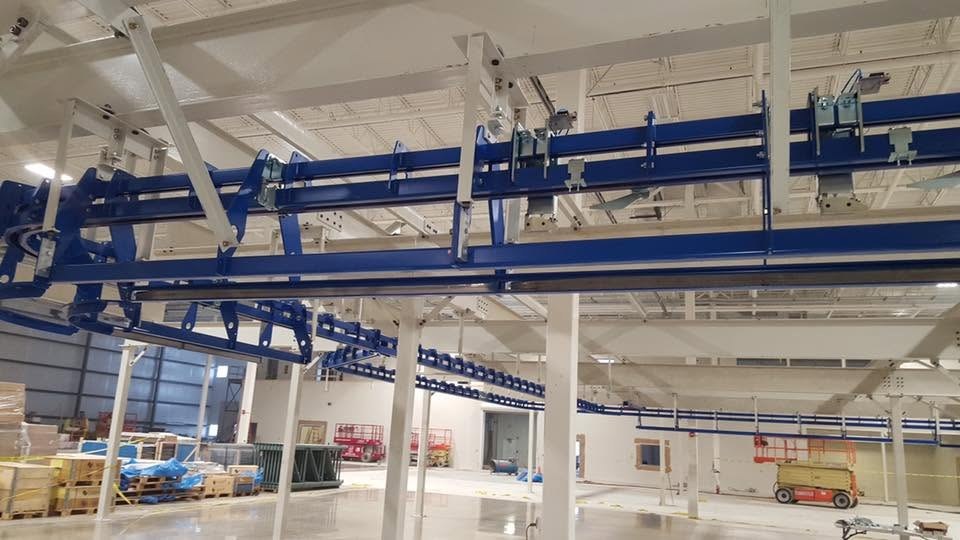

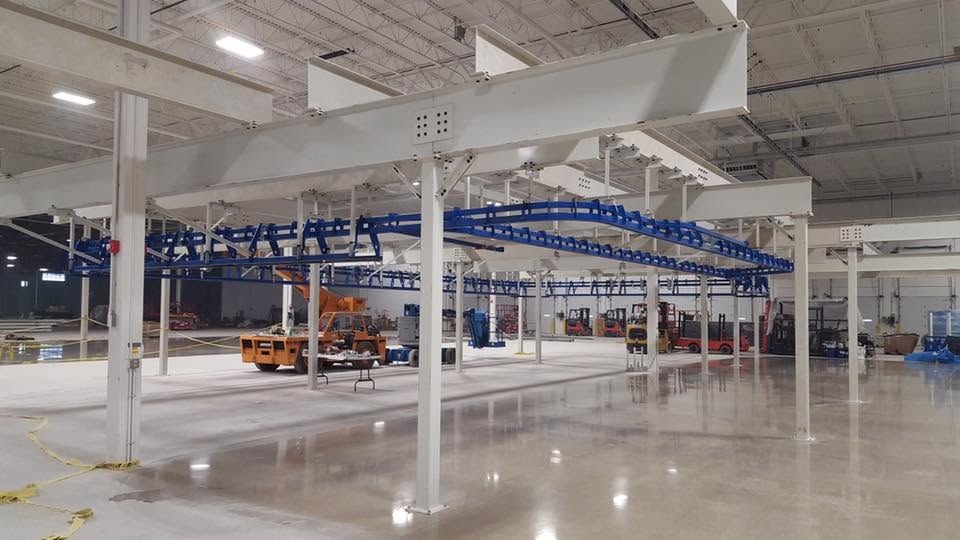

Four power-and-free assembly lines were installed with supporting steel. The field photographs show the blue track routes and white bolted frames.
An integrated finishing scope.
IMH provided and installed four paint booths and a mix room as part of the assembly and finishing project.
The supporting equipment.
The work also included three designed, fabricated, and installed explosion-relief ducts, along with hoists, rails, and ducting to the weld stations.
